FMA Steam Jacket Kettles

FMA Steam Jacket Kettles

FMA Steam Jacket Kettles are designed for wet food production, such as sauces, jams, curries or pie-meat. The Steam Jacket Kettles are designed with either self-contained electric steam-generation or installed along with a remote steam-generator, which can be gas or electric. The Steam Jacket Kettles are made to order and are available in a range of sizes from 150-2000L. They can be supplied as a stand-alone unit or part of a much larger integrated system. FMA Steam Jacket kettles are unique in that they are made-to-order based on your needs, designed and manufactured in Australia, and the rectangular-shape is space-saving in a commercial kitchen setting.

FMA Steam Jacket kettles come with touch-screen automation and a range of programable temperatures, speeds of agitation and cooking time, etc.

At FMA, we can work closely with you in order to design and manufacture a Steam Jacket Kettle that is customised to your specific needs. We also have standard ‘off the shelf’ models that may be adequate for your needs and meet your budget.

We have previously manufactured Steam Jacket Kettles for use in the manufacture of jams, sauces, pie-meat, porridge, fudge, roux, custard, curries and stocks, and for use in such settings as hospital, prison, and aged-care central kitchens, and ready-made meal, pie, chocolate, and other gourmet food manufacturing facilities.

Optional functions and extras for our Steam Jacket Kettles include:

  • CIP (Clean in place) function / spray balls
  • In-jacket cooling/chilling
  • Direct Steam Injection
  • Emulsifier
  • Eurobin and tub lifter/tipper
  • Load cells (for weighing)
  • Pressure cooking
  • Product outlet valve size options
  • Scraper blades provided adequate for temperature
  • Tilting/tipping
  • Up to 200 ℃ cooking surface temperature

Ideal for/Purpose:

Wet food production, e.g. sauces, curries, jams, pie filling.

Size Options:

150L – 2000L

Energy/Power Requirements:

3 phase electricity.
Self-contained electric steam-generation or remote steam-generator (gas or electric).

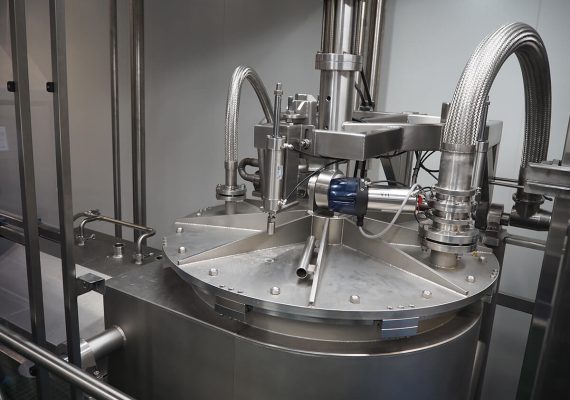

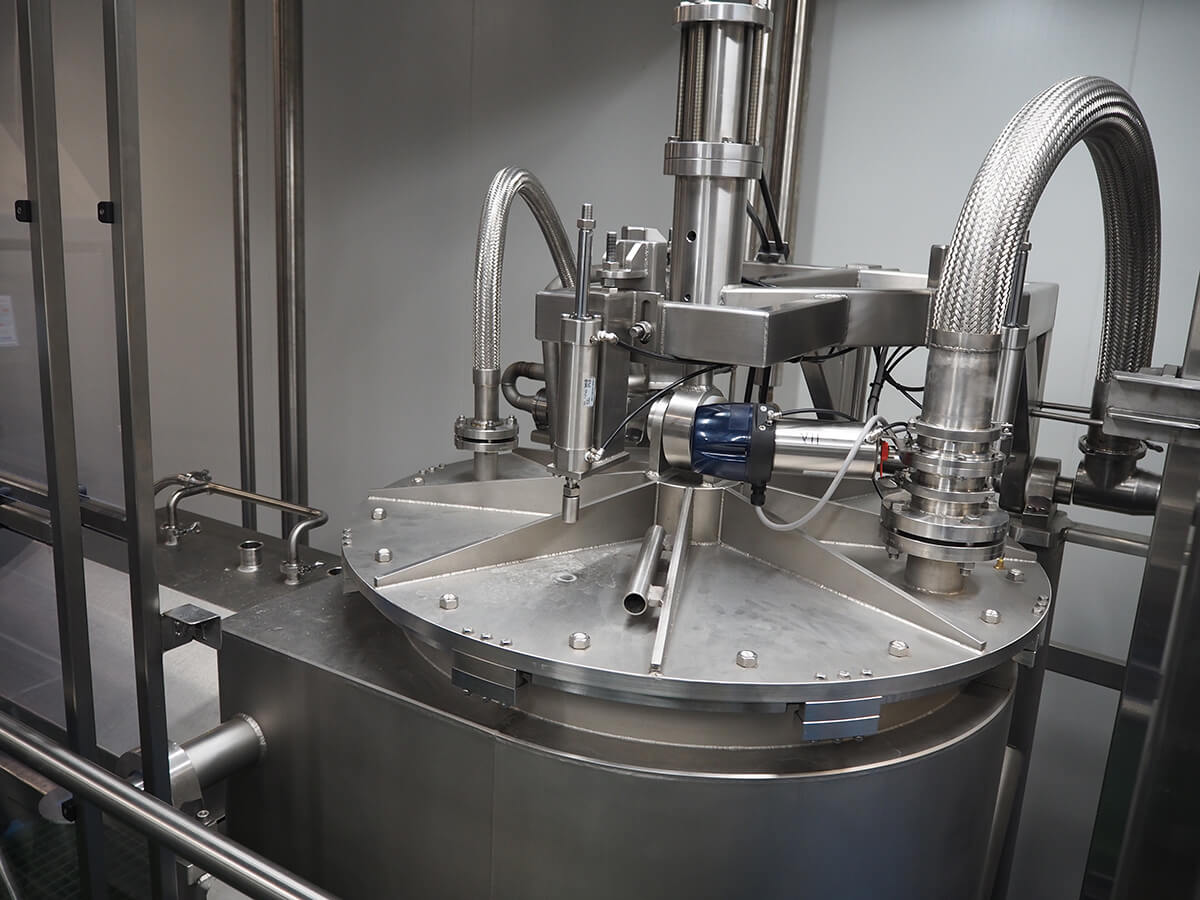

FMA-tilting-steam-jacket-pressure-kettle-with-direst-steam-injection

FMA tilting steam jacket pressure kettle with direct steam injection.

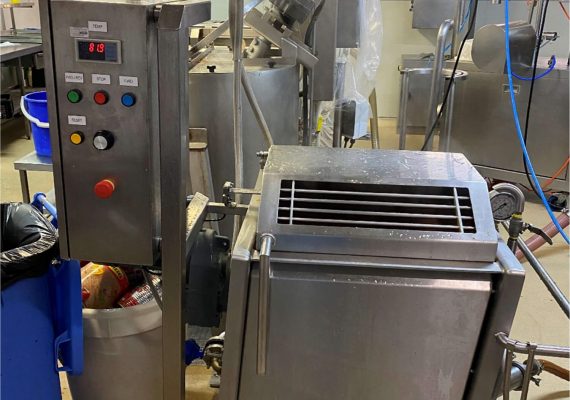

FMA Kettles-2

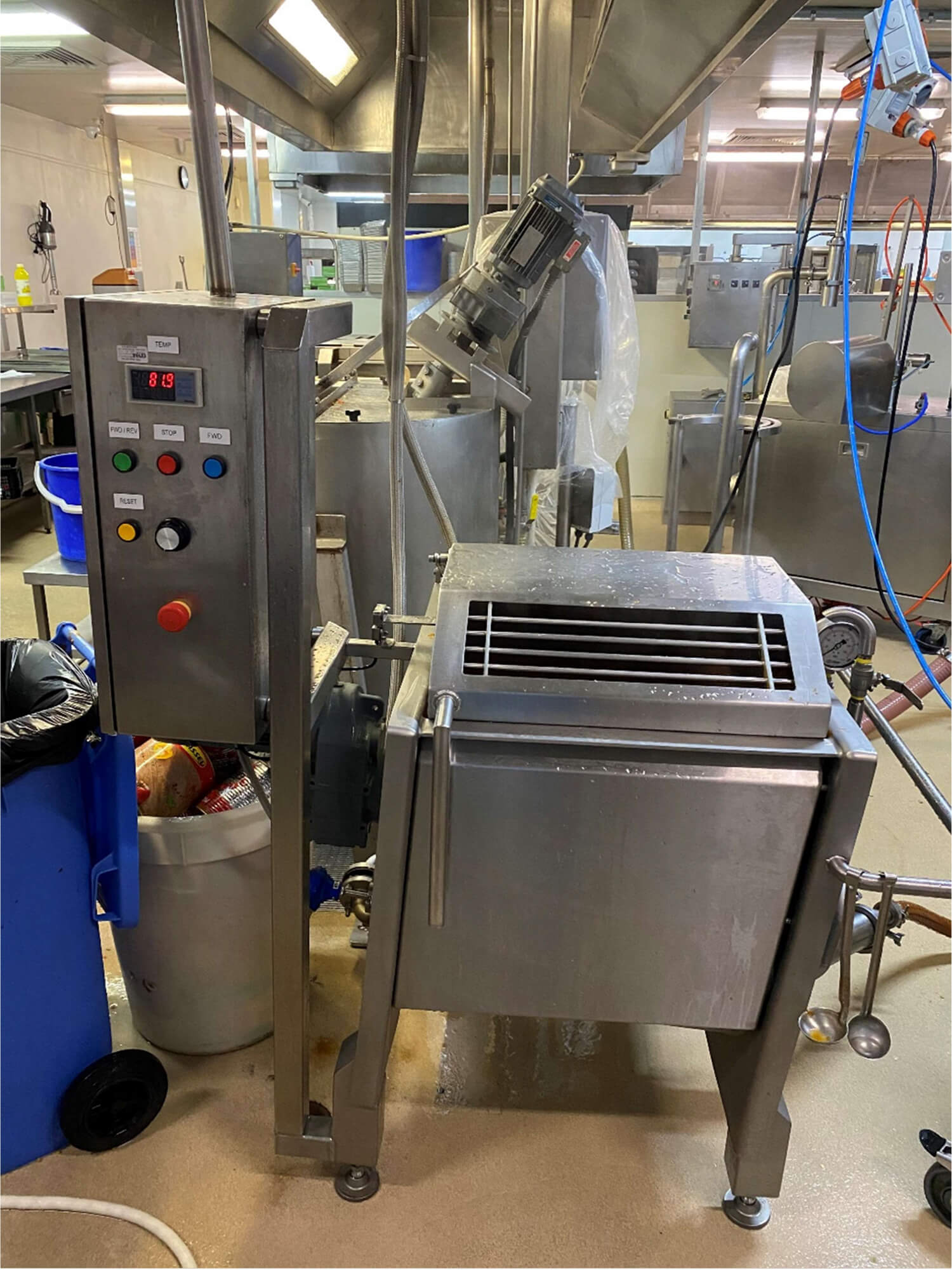

FMA 150L Agitated kettle.

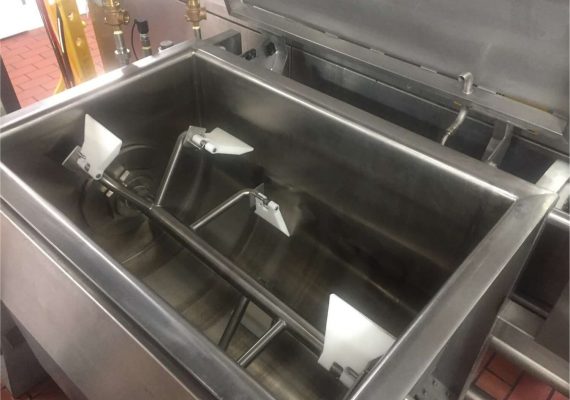

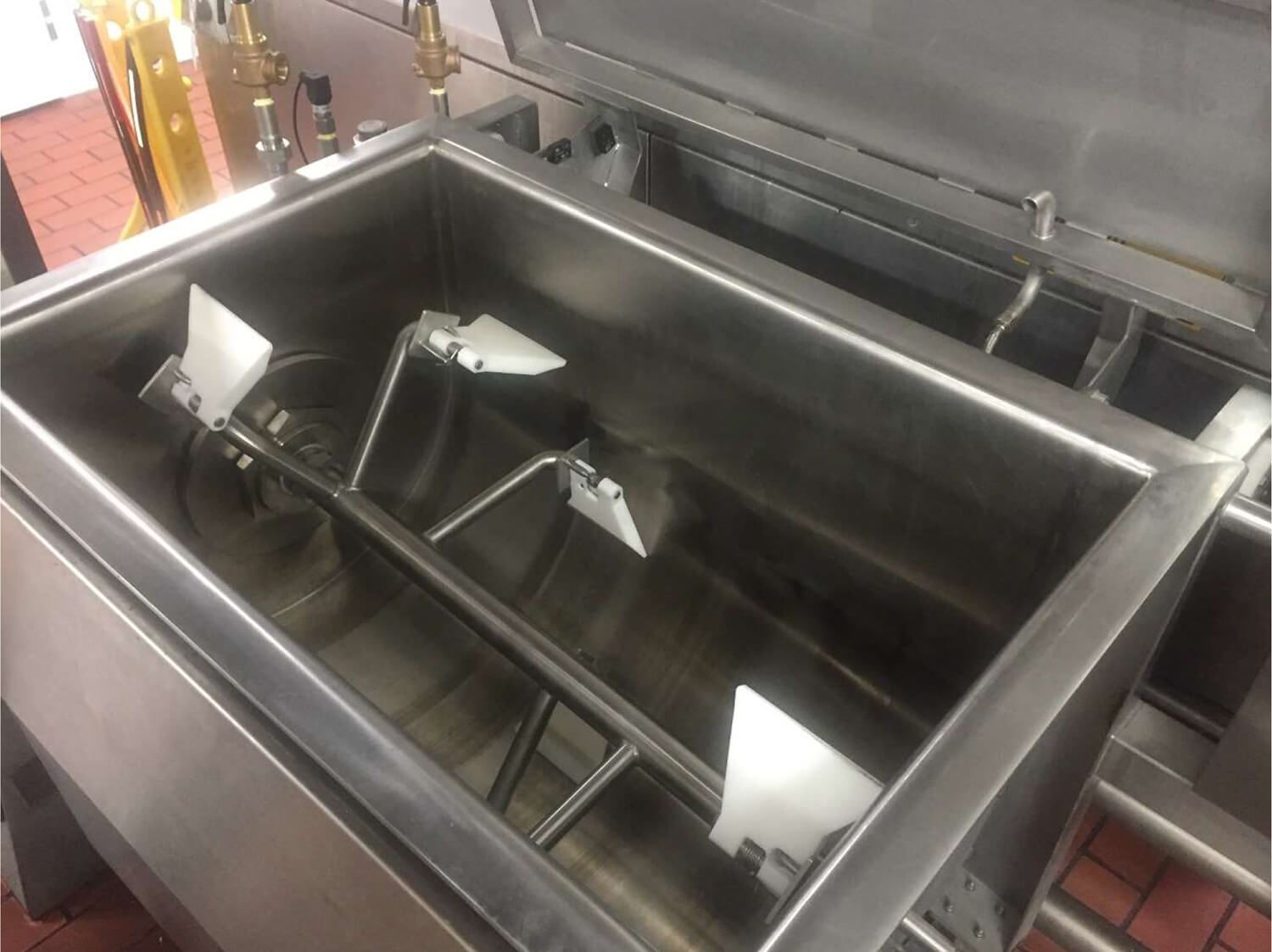

FMA Kettles-4

Typical agitator specified when delicate action is required and general applications without a euro bin loading system.

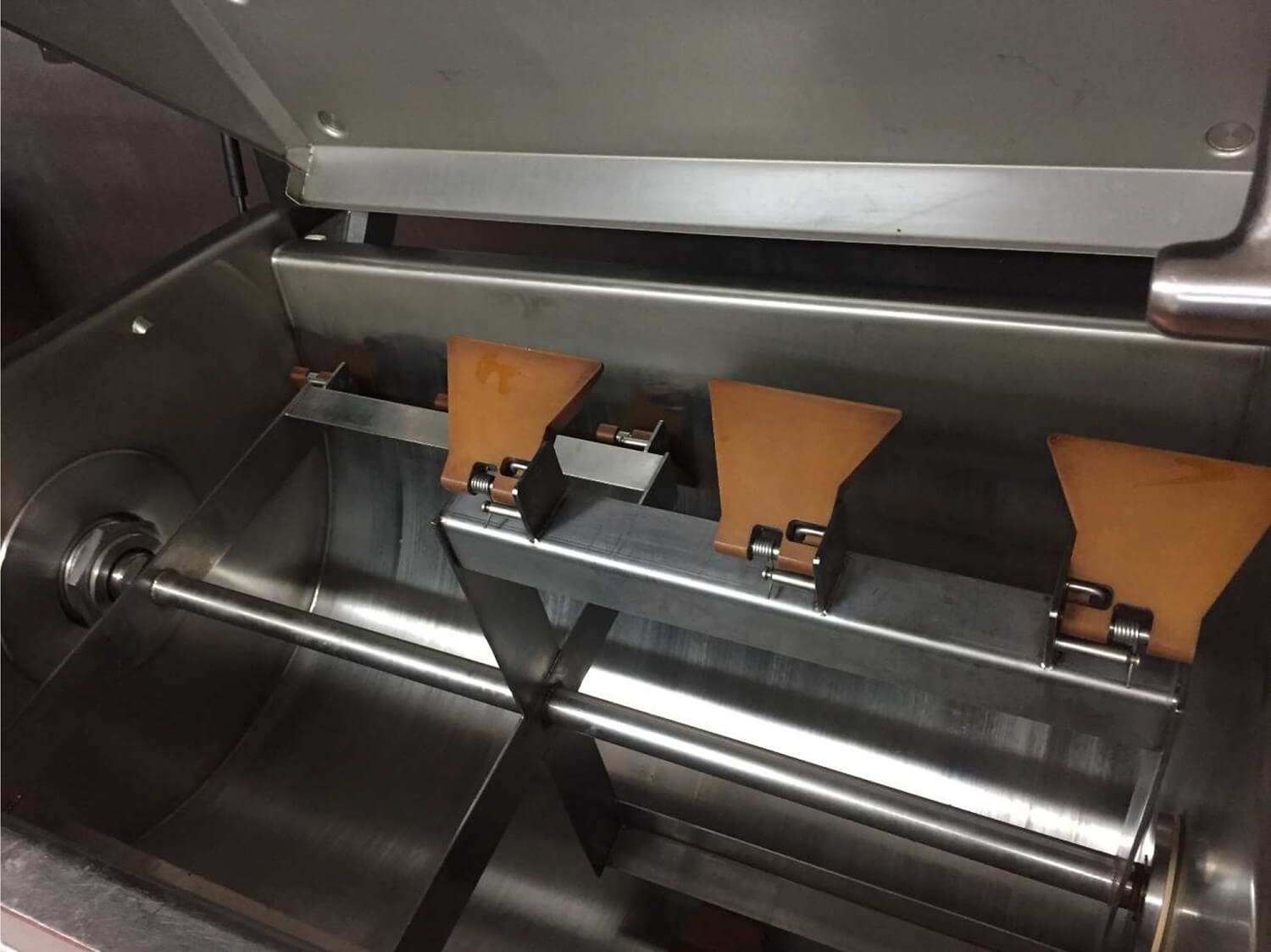

FMA Kettles-5

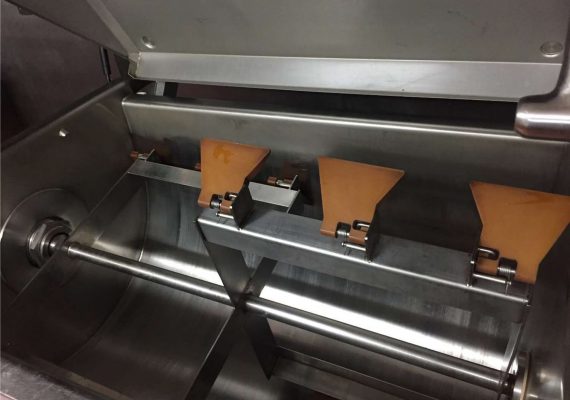

Typical agitator specified for robust mixing and breaking up minced meat while cooking. Also specified when a euro bin lifter is specified to with stand the loading impact.

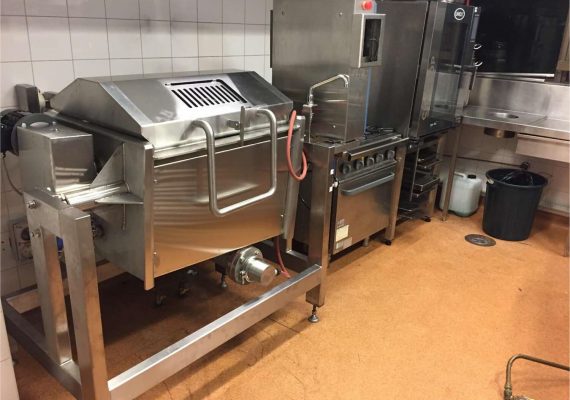

FMA Kettles-6

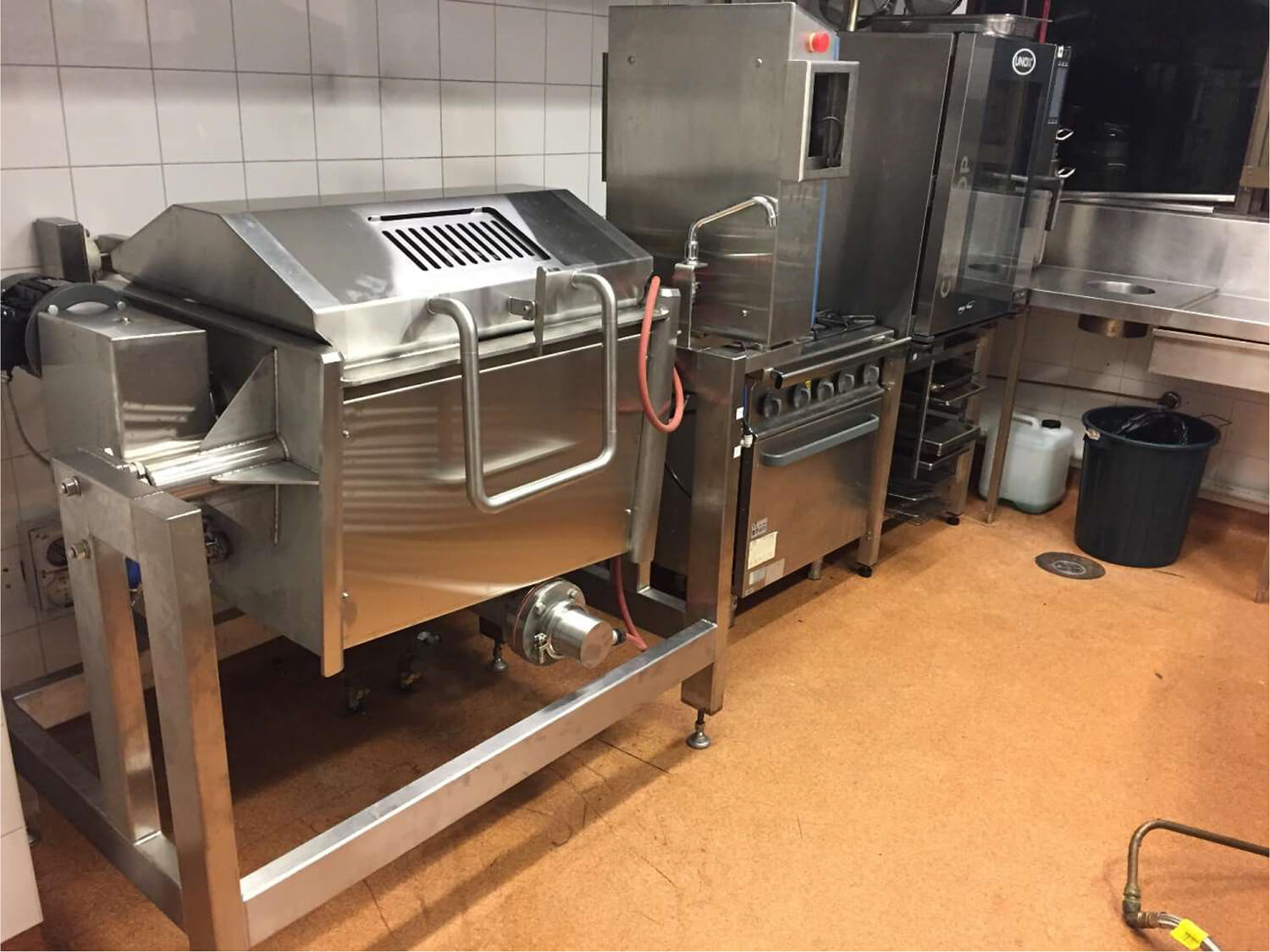

FMA self-contained electric kettle with agitator and hydraulic tilting.

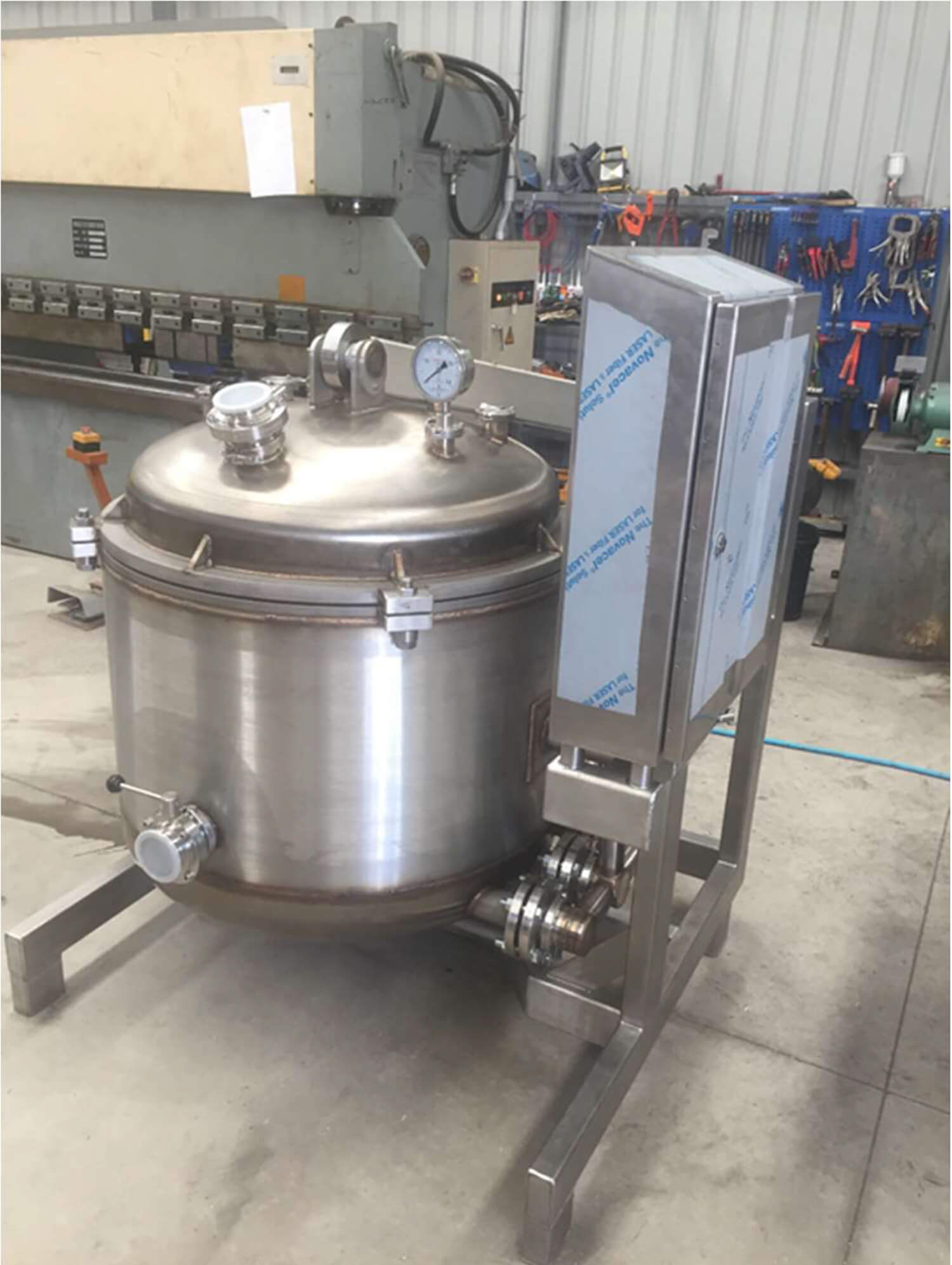

FMA Kettles-9

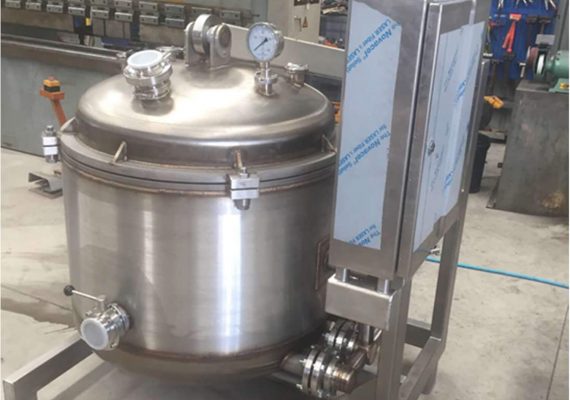

FMA 300L self-contained pressure kettle.
