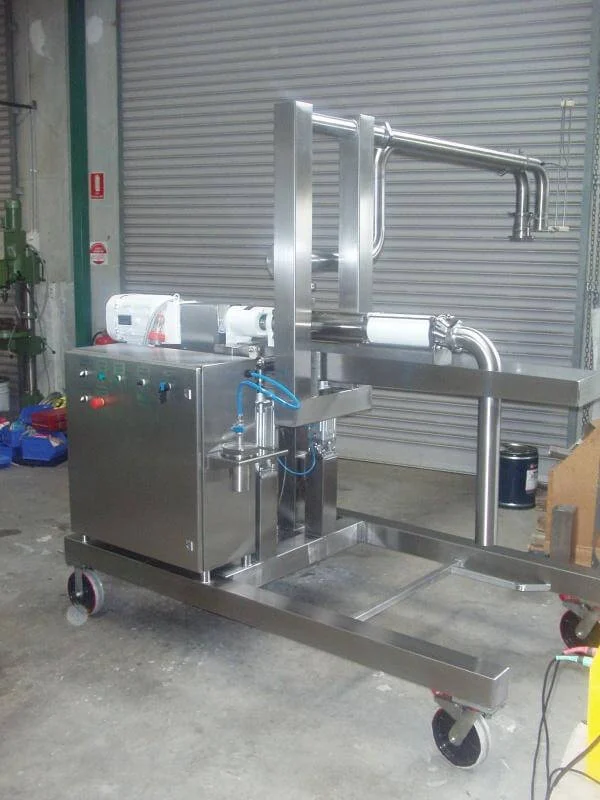

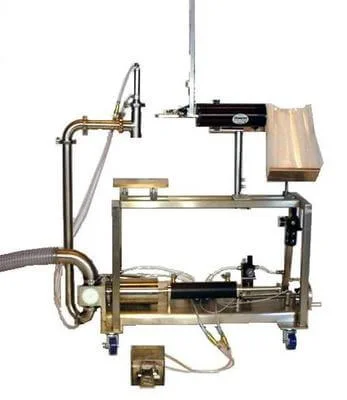

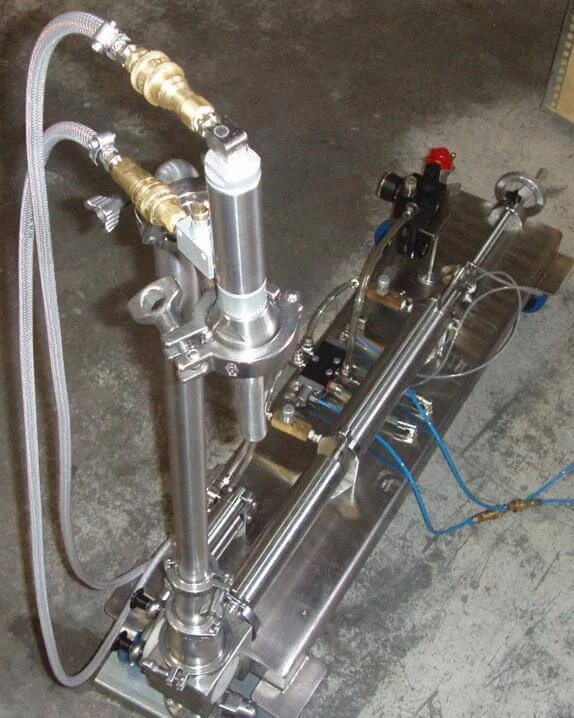

FMA Depositors/pump fill stations
- Delivers a broad range of fill volumes via a fast & simple screw adjustment from 30mL up to 15L
- Fill volume is accurate & consistent
- Tapered fill ports eliminate product (solids) damage
- Can operate at 10 to over 60 cycles-per-minute, to handle different product needs.
- Foot pedal activation, with single cycle or continuous setting and pneumatic flow control to regulate cycle speed
- Compact and mobile, for easy use, storage & cleaning
- No electric components, and can be washed down
- Available with 12.5mm to 150mm piston diameter and 100mm to 250mm stroke or chamber length
- Options include: label printer, pan filling conveyor, conical hoppers for kettle-to-pump transfers, sensor discharge for filling tubs, bowls or trays.
